ZARF2590-L-TV-A
滚针/推力圆柱滚子轴承
滚针/推力圆柱滚子轴承ZARF..-L，双向，适合螺栓安装，长轴定位垫圈

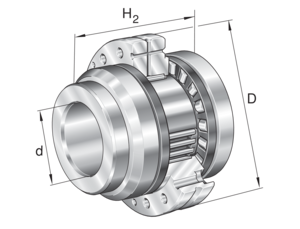

主要尺寸和性能数据
| d | 25 mm | Bore diameter |
| D | 90 mm | Outside diameter |
| H | 75 mm | Height |
| Ca | 80,000 N | Basic dynamic load rating, axial |
| C0a | 199,000 N | Basic static load rating, axial |
| Cr | 24,300 N | Basic dynamic load rating, radial |
| C0r | 41,500 N | Basic static load rating, radial |
| Cua | 18,600 N | Fatigue load limit, axial |
| Cur | 6,000 N | Fatigue load limit, radial |
| nG Oil | 4,900 1/min | Limiting speed for oil lubrication |
| nG Grease | 1,400 1/min | Limiting speed for grease lubrication |
| MRL | 1.6 Nm | Bearing friction torque |
| ≈m | 1.506 kg | 重量 |
