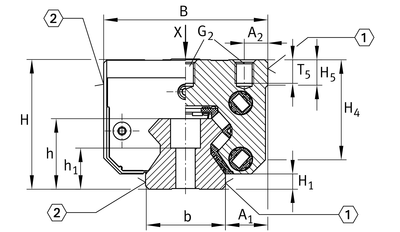

| A1 | 23.5 mm |
|
| JB | 75 mm |
|
| b | 53 mm | width rail |
| A2 | 12.5 mm |
|
| L1 | 165 mm |
|
| LS | 2.75 mm |
|
| JL | 95 mm |
|
| H1 | 11 mm |
|
| H4 | 61.4 mm |
|
| H5 | 16 mm |
|
| T5 | 15 mm |
|
| G2 | M12 | fixing screws below (DIN ISO 4762-12.9) |
| G2 MA | 140 Nm | maximum tightening torque 3 |
| A3 | 18.1 mm | position lubrication connector |
| N3 | M6 | lubrication connector |
| t N3 | 6 mm | maximum permissible screw depth for lubrication connectors |
| A4 | 18.1 mm | position lubrication connector |
| N4 | 6 | lubrication connector |
| t N4 | 6 mm | maximum permissible screw depth for lubrication connectors |
| JL6 | 51.9 mm | position lubrication connector |
| N2 | 6 mm | max. diameter of lubrication hole in adjacent construction 4 |
| JL5 | 40.6 mm | position lubrication connector 5 |
| GS | M4x4 |
|
| O | 10x1,5 mm | O-Ring DIN 3771 |
